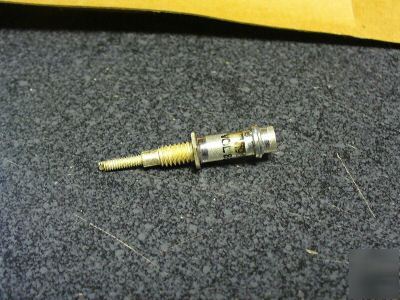

Capacitor,variable,glass dielectric
CAPACITANCE RANGE IN PICOFARADS - 0.75 TO 3.50 SINGLE SECTION
NONDERATED VOLTAGE RATING AND TYPE - 500.0 DC CONTINUOUS SINGLE SECTION
NONDERATED OPERATING TEMP - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS - 50.0 SINGLE SECTION
TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS - -50.0 TO 50.0 SINGLE SECTION
OVERALL LENGTH - 1.360 INCHES NOMINAL
BODY LENGTH - 0.594 INCHES NOMINAL
OVERALL DIAMETER - 0.203 INCHES NOMINAL
ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY - 1 SLOTTED SCREW
ADJUSTMENT DEVICE TORQUE - 1.500 INCH-OUNCES MINIMUM AND 8.000 INCH-OUNCES MAXIMUM
TERMINAL TYPE AND QUANTITY - 1 TAB, SOLDER LUG
TERMINAL LOCATION - CIRCUMFERENCE PERPENDICULAR
TERMINAL LENGTH - 0.244 INCHES NOMINAL
TERMINAL WIDTH - 0.125 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY - 1 THREADED BUSHING
BUSHING DIAMETER - 0.164 INCHES NOMINAL
BUSHING LENGTH - 0.281 INCHES NOMINAL
BUSHING WIDTH - 0.139 INCHES NOMINAL
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR - UNC
NOMINAL THREAD SIZE - 0.164 INCHES
III PRECIOUS MATERIAL - SILVER
III PRECIOUS MATERIAL AND LOCATION - BUSHING AND CORE AND LEAD SCREW SILVER
