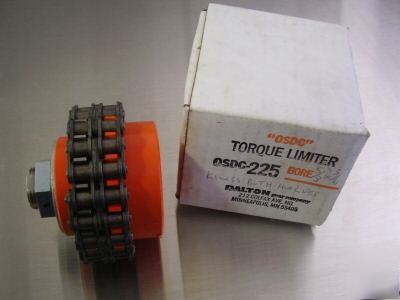

Dalton gear co torque limiter osdc-225 bore 5/8"X3/4"
OVERLOAD SAFETY DEVICE COUPLING
The Dalton OSDC (Overload Safety Device Coupling) provides overload protection through the use of an OSD unit combined with a roller chain coupling half counterbored to fit the OSD flange. Standard double-width roller chain is used to couple the basic OSD unit and the coupling half.
The OSDC can be set with a torque wrench for maximum load desired. The unit functions as a roller chain coupling until an overload occurs, causing the OSDC to disengage. The device is automatically re-engaged when the overload is eliminated.
FORMULA FOR TORQUE-HORSEPOWER (Foot Pounds)
TORQUE (Foot. Pounds) = (HPx5252)/RPM
HORSEPOWER = (Torque x RPM)/525
