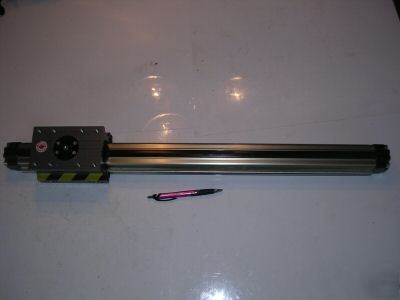

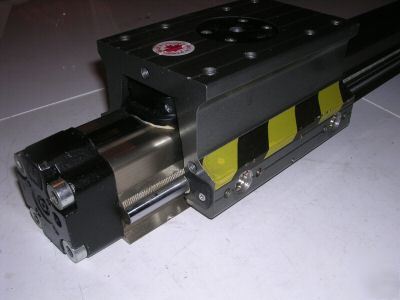

New numatics rodless guided air cylinder 32 x 510MM
Rodless drive Type NR with S5 Standard Carriage with Turcite Bearings
Guided force in confined spaces. The high-performance pneumatics suitable for high load and high speed
Unused Crib Stock, Double Acting, 32mm 1-1/4" Bore by 510mm 20" Stroke
M = Magnetic Carriage Only, Position sensing , Side Air Supply Ports are 1/4, Max PSI 10 bar or 145 psi
The NR Series rodless offers an alternative solution to conventional cylinder applications. It's compact design cuts space requirement by 50% compared to rodded cylinders. Additionally, the extruded tube construction requires fewer supports than other cylinders. Dual air supply at one end eliminates tubing going to the opposite end of the cylinder. This design prevents interference with the operation of the cylinder.
* Anodized single barrel extrusions
* Various bore sizes, 25, 32, 40, and 50mm
* Retained cushion adjustments
* Kevlar reinforced thermosplastics strip seals
* Up to 10bar (145 psig) working pressure
* Ambient temperature range from -20ºC to + 80ºC (–4ºF to +175ºF)
* Uses filtered air with or without lubrication
* Operating Speeds up to 3 m/sec (9.75ft./sec)
* Manufacturing and process - Tool and parts carrier/automotive
* Packaging - Corrugated box erector - Plastic heat seal equipment
For more Info please goto the Numatics catalog at; http:// /deliverables/catalogs/cylinders/nr&gseries.pdf
