Sage 950RTS remote test systems, t-1/ e-1, echocanceler

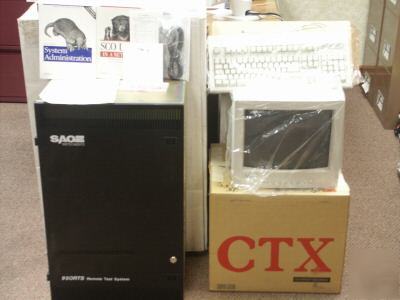

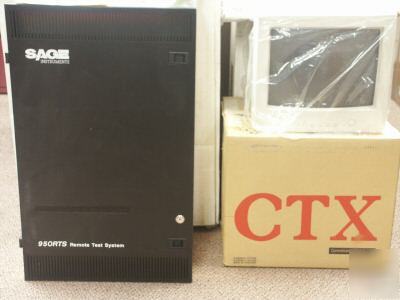

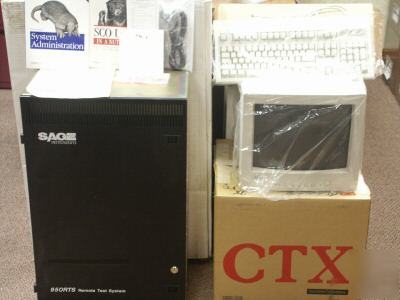

Sage Instruments 950RTS ***NEW*** Remote Test Systems, Used for Testing Network Switching, T-1/ E-1 Facilities and Echo Cancelers, Analog & Digital Telephone Networks, Mounts Directly in Telephone Equipment Rack.
The 950RTS Remote Test System is designed to meet the needs of all applications associated with testing network switching, T-1 facilities, E-1 facilities, and echo cancelers.
The system uses a 32-bit SCO UNIX® operating system providing capabilities for multi-user, multi-tasking operation. The basic system allows two users to access the system simultaneously and can be expanded to 16 users. (Contact Sage Instruments for informa-tion regarding systems that require more than 16 users.) With the right options, a single 950RTS can support up to 32 simultaneous DS-0 test sessions.
The 950RTS runs an easy-to-use, menu-based environment. Users can testing locally or remotely via serial I/O, modem, or LAN interfaces. The system is password, logon protected, and provides three levels of security.

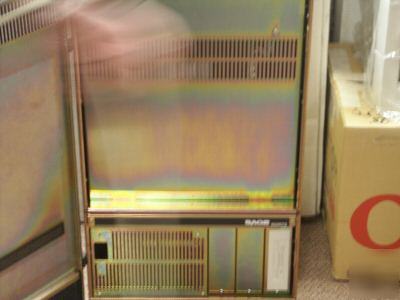

950RTS Testhead and Application Server
• 20 slot chassis • Intel® Pentium® processor with flash BIOS
• TCP/IP networking • 10Base-T ethernet LAN interface
• 1.44 MB floppy disk • multi-gigabyte hard disk
• 2 serial I/O ports • 120/240 V AC power supply
• VGA video and AT-style keyboard interface connections
923LTS Handheld Local Loop Test Set
ALTS (Automated Loop Test System) adds the capability to the 950RTS to test metallic or wireless local loops. The 950RTS with the ALTS option (950RTS-607) uses the 923LTS handheld unit as a field test unit to quickly profile the transmission performance and service provisioning of local loops. ALTS software running on the 950RTS consists of two components: the measurement software and the database server software. Loop test results are automatically stored in the 950RTS database server. Users can access the results via the LAN interface using built-in database utilities, SQL commands, or an SQL database client.
CDR2000 Cellular Diagnostic Responder
Cellular Diagnostic System (CDiS) adds powerful cellular testing capabilities to the 950RTS. CDiS is designed to automatically test an entire wireless infrastructure, end-to-end, in both directions. The system consists of the 950RTS as the application server, ACTS (Automated Cellular Test Software), and the CDR2000 Cellular Diagnostic Responder. ACTS includes a database and an easy-to-use interface so users can easily set up and execute tests, define automated test routines, filter test results, and generate reports.
• Voice Frequency Test Suite—enables the 950RTS to perform a variety of IEEE-743 voice frequency measurements.
• Automated Trunk Routining —enables the 950RTS to set up test routines and perform scheduled 105 voice transmission tests.
• DS-0 BER Test Suite—enables the 950RTS to perform DS-0, switched 56/64 Kbps, and DDS BER tests, and supports all standard test and loop back patterns.
• DS-1 BER Test Suite—enables the 950RTS to perform DS-1 tests and supports all standard test and loop back patterns.
• ATME—enables the 950RTS to perform echo canceler testing and characterization.
Options, which you can purchase, enhance the features and testing capabilities of the 950RTS. Options provide the major extended test functions listed below.
• ATME and ROTL responder emulation
• automated trunk routining (ATR)
• standard VF test measurements
• 4- or 8-port serial I/O card for DCS or switch control
• network (LAN) card and software
VF Test Measurement Capabilities
• send and measure tone level and frequency
• measure noise (3-Khz flat, C-message, C-notch)
• send and measure return loss (ERL, SRL-high, SRL-low)
Data Test Measurement Capabilities
• 4-tone intermodulation distortion
• phase/amplitude jitter and hits
The optional Automated Cellular Test Software (ACTS) feature includes support for the following switches.
• Lucent (TDMA and AMPS) • Motorola (AMPS, NAMPS, and CDMA)
Each of the options described in the following sections is designated software only (SO), software and hardware (S/H), or hardware only (HO).
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
