Samsung S3C2440 ARM920T ARM9 singel board computer
- Samsung S3C2440A，400MHz，Max. 533Mhz
- 4 wire resistive touch screen interface
- Up to 4096 color STN,3.5 inches to12.1 inches, up to 1024x768 pixels
- Up to 64K color TFT,3.5 inches to 12.1 inches, up to1024x768 pixels
- In box NEC 256K color 240x320/3.5 inches TFT screen, with touch screen
- On board 12V DC for power supply of a larger size LCD
- 1 10M Ethernet RJ-45(CS8900)
- 1 Steoro Audio out，1 Micro In；
- 1 POT can be used for A/D converter adjust
- Power In(12V), with switch and lamp

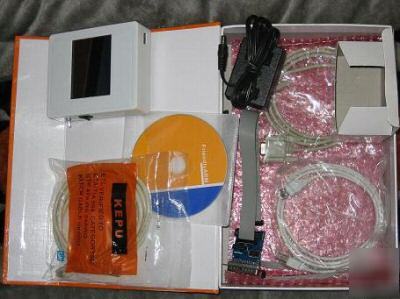

(1) 1 S3C2440 board (Preload with Linux)
(7) 1 DVD-ROM with product reference
(8) 1 NEC LCD: 3.5", 240x320, with touch panel
(2) WindowsFlash Programmer SJF2440
(3) LinuxNand Flash Programmer Jflash-2440(source code included)
(5) Bitmap to C Language transfer tool
(7) vivi source code(linux bootloader)
(8) LED test program(ADS1.20 project)
(9) 2440test program(ADS1.20 project), include :
key test, RTC test, ADC test, IIS Audio play(wav), IIS Audio record,
touch screen test, I2C test, Samsung 3.5"LCD, 640x480 TFT test
(10) WindowsCE BSP and sample project file.
(11) Pre-compiled Win CE image for evaluation
(12) Linux tool and kernel source code ：
- arm-linux-gcc-3.3.2 to compile Qtopia
- arm-linux-gcc-3.4.1 to compile kernel
- arm-linux-gcc-2.95.3 to compile vivi
- yaffs file system image maker -mkyaffsimage
- linux-2.6.13 for S3C2440 kernel source code(includeCS8900,LCD driver,Audio,
Touch screen, YAFFS Source code, SD Card, RTC, Expand serial driver,
USB Camera,USB Mouse and Keyboard, U-Disk)
(13) Pre-compiled Linux image for evaluation
(14) Qtopia source code，web browser source code
(15) Schematic(Protel99SE/PDF)
