Cnc, 3 axis stepper motor controller, milling,lathe
3 AXIS MICRO STEPPING CONTROLLER BOX WITH A LOGIC VDC POWER SUPPLY INDSIDE AND
28 VDC 4 AMPS EXTERNAL MAIN POWER SUPPLY

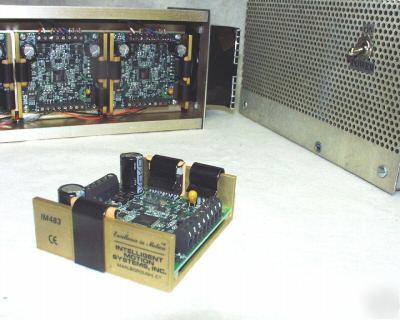

( I PUT ONE OF THE DRIVERS ON PICTURES FOR YOU TO HAVE BETTER IDEA OF THE MAIN COMPONENT INSIDE THE BOX THEY ARE THREE DRIVER INSIDE THE BOX)
NO GECKO 201 OR XYLOTEX DRIVERS HAVE SOME OF THE NEAT FEATURES OF THE IM483 MICRO STEPPER DRIVERS
THE 3 INDIVIDUAL MICRO STEPPER DRIVER INSIDE HAVE THE ABILITY TO CHANGE MOTOR RESOLUTION ON FLY WITHOUT
LOOSING STEPS OR POSITION , AND THE HIGH 52000 STEPS PER REVOLUTION MAKE THIS MICRO STEPPER DRIVERS
COPY THE NEXT ADDRESS TO FINE EVEN MORE ABOUT THE IM483'S
http:// /im483.html

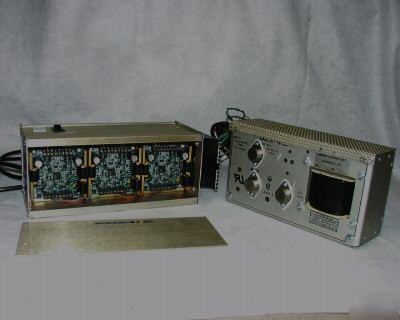

IMS IM483 (3 INDIVIDUAL DRIVERS INSIDE THE BOX)
THIS CONTROLLER BOX AND THE EXTERNAL POWER SUPPLY WAS RECENTLY ASSEMBLED AND TESTED

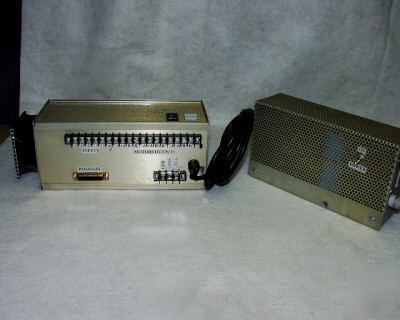

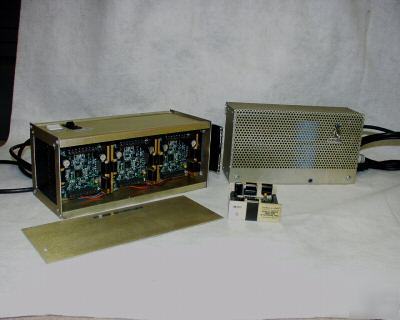

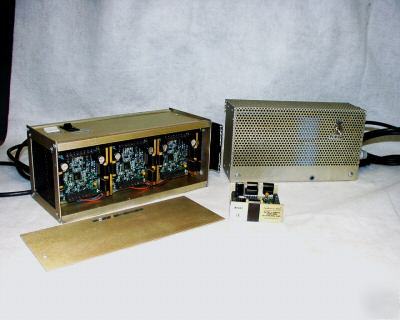

THE BOX SHOW ON PICTURES IS WHAT YOU GET
I TESTED THIS UNIT AND WORKS FINE USING MACH3 DEMO SOFTWARE
VERY COMPACT BOX ,11 INCHES LONG BY 4 INCHES SQUARE

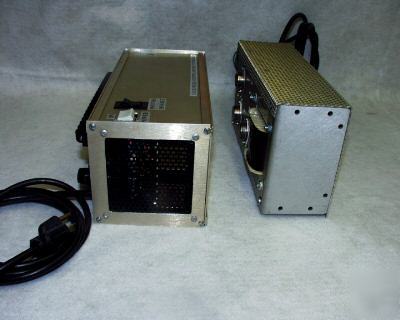

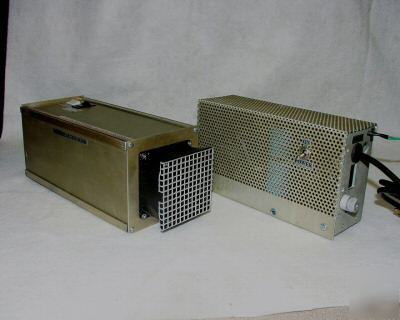

TUNNEL DESIGN FOR THE DRIVERS COOLING AIR FLOW
WHAT YOU SEE ON PICTURES IS WHAT YOU GET
READY TO RUN ON ANY PROGRAM TO ACCEPT STEP DIRECTION SIGNAL VIA COMPUTER PARALLEL PORT
SWITCH TO DISABLE / ENABLE MOTORS ANY TIME
THIS BOX WAS DESIGN TO EASY UPGRADE MOTORS, EASY ACCESS TO ADJUST MOTOR CURRENT AND CONTROL SPEED/
RESOLUTION FROM THE EASY OPEN SLIDING DOOR
THREE 2 PHASE STEPPER MOTORS 4,6 OR,8, WIRES
MAIN COMPONENTS INSIDE OF THE BOX:
3 INDIVIDUAL MICRO STEPPING DRIVERS IM483 UP TO 52000 STEP PER REVOLUTION EACH DRIVE CAN DELIVER UP TO 4 AMPS
http:// /im483.html
5V DC POWER SUPPLY FOR LOGICS (CAN'T SEE ON PICTURES BECAUSE IS BEHIND THE DRIVERS )
MOTOR OUTPUTS CONNECTOR EASY TO REPLACE /UPGRADE MOTORS
INPUTS CONNECTOR TESTED FOR HOME AND LIMIT SWITCHES WITH MACH 3 DEMO SOFTWARE
25 PIN TO PARALLEL PORT CONNECTOR READY
TO INTERFACE WITH YOUR COMPUTER

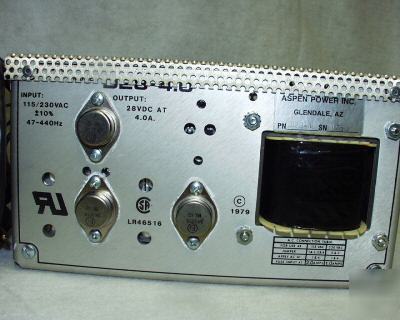

THE EXTERNAL POWER SUPPLY IS NEW BUT I COVER WITH USED ALUMINUM METAL AND ADD FUSE, ON- OFF SWITCH AND IS
READY TO HOOK TO THE CONTROLLER
THREE 2 PHASE STEPPER MOTORS 4,6 OR,8, WIRES
