Smt/smd rework station 8502+fixture+hot plate

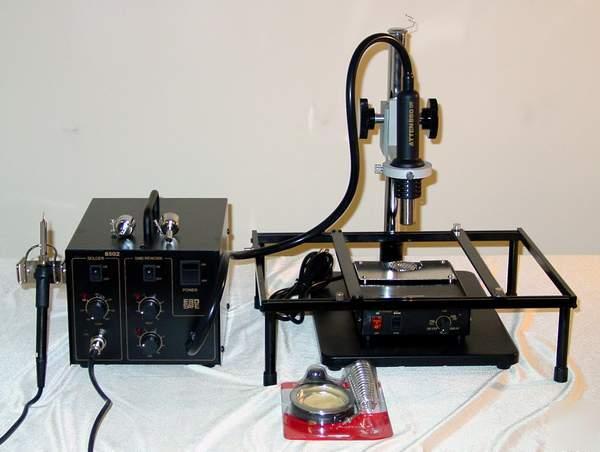

Brand new MADELL 8502 soldering station for surface mount componets. The station comes with 2 nozzles.
* Compact system. Comes with a sharp tip regular soldering iron for fine pitch chips, a hot air gun with two nozzles for surface mount components.
* Built in air pump. No need for external compressed air source.Strong hot air pump.
* More powerfull soldering iron than 936.
* Temperature and air pressure controlled seperately.
* Hot air temperature: 100°C to 480°C.
* Iron temperature: 200°C to 480°C.
* Power consumption: 360W(Max).
* 110V power supply. 220V models also available.
* Nozzles included: A1130(4.4mm round), A1170(7.2mm round).
* Total 31 hot air nozzles available at additional cost. The nozzles are exchangable with Hakko and other hot air soldering stations.
* One year warranty applies. Repair service or replacement is done by us.
* Fast heat up, 10 seconds to reach 250°C.
* Built in temperature sensor for stable temperature control.
* Hot and cool air selection for chip preheating or cooling.
* Used together with a hot air rework station and fixture for BGA and other IC's.
* Temperature: 120°C to 250°C(at nozzle).
* Air volume: 0.18 cubic meter/min.
* Size: 100(W)x60(H)x170(D)mm.
Test it in our Los Angles showroom. Call (***)670-9023 to make arrangement.
