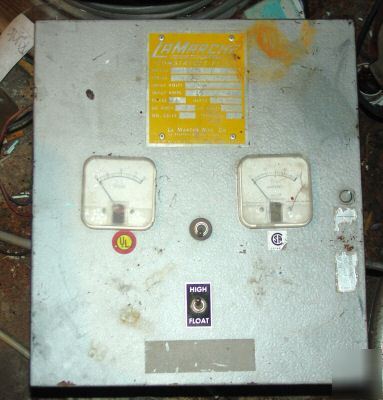

Engine starting battery float charger 6 cells la marche
• Magnetic Amplifier Circuitry provides increased
longevity and worry-free operation
• Automatic AC Input Voltage Compensation +/- 10%
• AC input and DC output fusing protects battery
• AC Power Failure Relay w/ (1) set of Form “C†contacts
• Float/Equalize Mode Switching
• Automatic DC Voltage Regulation
• DC Current Limiting Circuitry (typically less than 140%)
eliminates the need for cranking disconnect relay
• 5% Accuracy Analog DC Ammeter & DC Voltmeter
• Charger design prevents battery from discharging
• Complete isolation of the AC line from the DC
• Model A46F is filtered for Valve-Regulated batteries
Operating Temperature: 0 to 50°C (32 to122°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative Humidity: 0 to 95% non-condensing
• AC Input Voltages of 120, 208 or 240, single phase
• NEMA 1 enclosure ANSI 61 gray baked enamel paint
• A46 models are U.L. 1564 and
The Controlled Magnetic Amplifier technology provides the highest reliability that is necessary for the continued operation of Emergency Standby Equipment and eliminates most starting problems by maintaining Batteries at full charge, ensuring optimum performance and maximum life. The A46/A46F is a completely automatic, solid state, constant voltage Battery Charger built to carry continuous and intermittent loads up to 80% of its maximum rated output capacity. It automatically senses the Battery and Load conditions and delivers the necessary amount of charge. Once the Battery becomes fully charged, the output current will automatically decrease to a very low Trickle Charge to prevent overcharging of the Batteries. The A46/A46F is designed and built to charge Flooded Lead-Acid or Nickel-Cadmium Batteries containing a specific number of cells. However, it is not suitable to charge sealed Valve-Regulated Batteries since these require output filtering such as a Power Supply (see our model A12B for this type of application). The front panel Float/Equalize switch is provided to manually initiate a periodic equalize charge to optimize Battery longevity.
model / serial / in v / in a / phase / dc amp / no cells / hertz / dc volts / type cell /
a46-20-12v / b-33 / 240 / 2.5 / 1 / 20 / 6 / 50-60 / 12vdc / L /
you can get a free online instruction manual and specification sheet here
http:// /productdetails.php?specialoffers=&productid=286&level=130&categoryid=150&brandid=
i am not affiliated with this company i am just a seller of good quality used equipment
