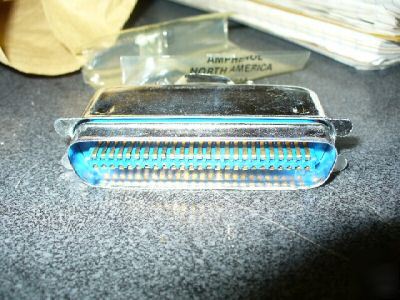

Connector,plug,electrical
BODY STYLE - 18A HOOD, TOP OPENING W/CLAMP
OVERALL LENGTH - 3.026 INCHES NOMINAL
OVERALL HEIGHT - 1.770 INCHES MAXIMUM
OVERALL WIDTH - 0.610 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - LATCH
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.995 INCHES MAXIMUM
SHELL TYPE - HOOD, TOP OPENING
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - MATING END
CONTACT POSITION ARRANGEMENT STYLE - AAAE 2 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END
INSERT MATERIAL - PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY - 50 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - LEAF SPRING SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 5.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - TAB, SOLDER LUG SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND VIBRATION RESISTANT
III PRECIOUS MATERIAL AND WEIGHT - 0.050 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
