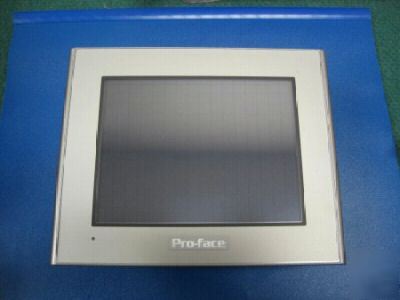

Pro face programmable operator interfaces GP2301
PRO-FACE PROGRAMMABLE OPERATOR INTERFACES, GP2000 SERIES, ETHERNET MODEL, 115.2MMW X 86.4MMH,STN COLOUR LCD, 64 COLOURS, RESOLUTION 320 X 240 PIXELS NIB.
OEM Part Number: GP2301-SC41-24V
Display: 5.7inch STN color LCD
Backlight: CFL (Service life: 50,000hrs, at 25°C and 24hr. operation)
Effective Display Area (mm): 115.2(W) x 86.4 (H)
Brightness Control: 4 levels of adjustment available via touch panel
Contrast Control: 8 levels of adjustment available via touch panel
Rated Voltage Range: DC19.2V to DC28.8V
Power Consumption: 22W or less
Allowable Voltage Drop: 10ms or less
(Actual drop must be less than 1 second)
Voltage Endurance: AC1000V, 20mA for up to 1minute
(between charging and FG terminals)
Insulation Resistance: 20Mohm or more at DC500V
(between charging and FG terminals)
External Dimensions: W171mm[6.73in.] x 138mm[5.43in.] x D60mm[2.36in.]
Panel Cut-out Dimensions: 156(+1 / -0)mm [6.14in.] x 123.5(+1 / -0)mm [4.86in.]
(Panel thickness: 1.6mm[0.06in.] to 5mm[0.2in.])
