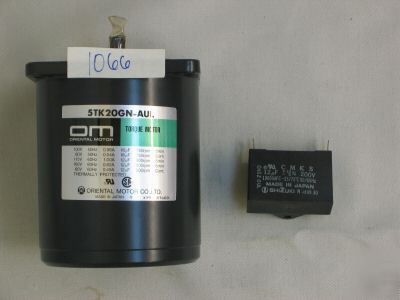

Oriental ac torque motor 1/32HPL 5TK20GN-aul
AC Torque Motor 1/32hp Oriental 5TK20GN-AUL NOS
100 M ohms or more when 500 VDC is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity.
Sufficient to withstand 1.5 kV at 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity.
Temperature rise of windings are 135°F (75°C) or less measured by the resistance change method after rated motor operation
UL/CSA Standard Class A [221°F (105°C)], EN Standard Class E [248°F (120°C)]
Built-in thermal protector (Automatic return type). Operating temperature, open: 248°F ± 9°F (120°C ± 15°C) close: 170.6°F ± 27°F (77°C ± 15°C)
14°F~104°F (-10°C~40°C) (nonfreezing)
* Oriental Motors Model # 5TK20GN-AUL
* Oriental Motors Product Page
· Has not been used or installed
