Sbc with PC104 interface and enclosure pc/104 pc 104
SBC with PC104 and Enclosure PC/104 PC 104

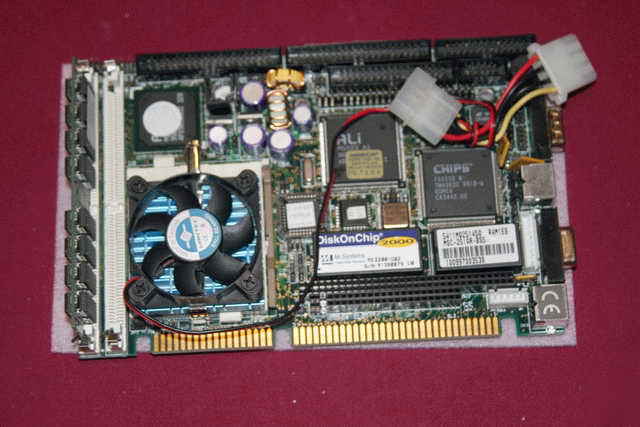

UP FOR sale used Advantech MBPC-640 Enclosure and Mitac MSC-251 All In One 586 Half-size ISA Bus slot computer with PC/104 interface
The Mitac SBC has been tested to boot up. The unit looks to be new from a open box. The accessories are still sealed in the manufactures bags. Comes with cables, manual and driver disks. The enclosure is used but is in good cosmetic condition. There are a few marks on the enclosure from transportation and it is missing a small cover plate on the top of the enclosure.
Dimensions - 9 D x 5 3/4 H x 3 1/2 W
Capability to extend the Hard Disk IDE Port, Floppy Disk port, and Printer port from the SBC to the case
Screw Terminals for connection to Power Supply. Need +12, -12, +5 and - 5 Volt power supply.
166 Mhz Pentium CPU on board. The card will support up to 200 Mhz Intel P55C, Cyrix 6x86 M1, M2 series, AMD 5K86, K5 Series, K 6 Series CPU
8 Meg RAM - SBC has 2 76 pin SIMM slots, supports up to 128 Meg Ram Max.
Built in PS2 Keyboard and mouse ports
2 PCI IDE interface to hard drives
PC/104 Bus for expansion modules
2 Meg of M Systems Flash Memory, will support up to 12 MB, used as primary or secondary drive.
On Board VGA/Panel display interface, up to 1024x768 resolution
Power Requirements: +12V @ 25 mA typical, +5V @ 3.27 A typical
Drivers provided for DOS, NT and Windows 95
comes with manual, driver disks, cables and hardware.
Please ask all questions before purchasing the item.
