Keyence npn fs-V21R amplifier expansion fs-V20

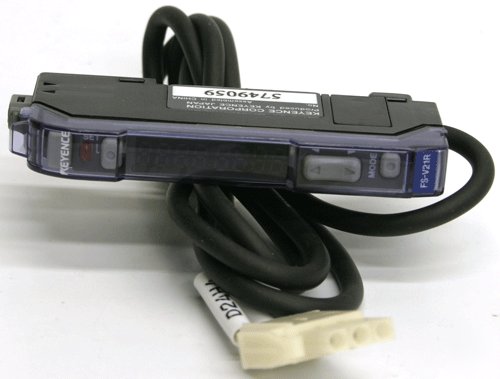

Keyence NPN FS-V21R Amplifier Expansion FS-V20
PHOTOELECTRIC FIBER OPTIC AMPLIFIER
Dual Digital Display Amplifier (FS-V20 Series) Specifications
Best in Class Performance with the Specifications to Back it Up.
For Full Details Download the PRODUCT CATALOG Using the SERVICE PULLDOWN Above.
FS-V20 Series Digital Display Amplifier
250μs (FINE)/500μs (TURBO)/1ms (SUPER TURBO)/4ms(ULTRA TURBO)/ 500μs (HIGH RESOLUTION)/50μs (HIGH SPEED)
Light-ON/Dark-ON (switch-selectable)
Light intensity/rising edge/falling edge
Mode:Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, selectable Variable range:1 to 500ms [1 to 30ms (in 1ms increments), 30 to 50ms (in 2ms increments), 50 to 200ms (in 10ms increments), 200 to 500ms (in 50ms increments)] Accuracy:±10% of the Preset Value
NPN or PNP 100 mA max. (40VDC max), Residual voltage : 1Vmax.
12 to 24VDC ±10% , ripple: 10% max.
Incandescent lamp: 20,000 lux max. , Sunlight: 30,000 lux max.
-10°C to +55°C (14 to 131°F), No condensation
10 to 55 Hz, 1.5-mm double amplitude, each in X, Y, and Z directions for two hours
500 m/s² Three times each in X, Y, and Z directions
If you require more detailed specifications, please contact the manufacturer for technical support.
