1 amp mini circuit and battery protector - low s/h
* 1 Amp Mini Circuit and Battery Protector - Brand New - Low S/H
* Manufactured by Raychem Polyswitch, Model LTP100S
* Continuous current: 1 Ampere
* Dimensions: .9†x .20†x .03â€
* Excellent for use with rechargeable batteries
* Solderable terminals and low profile allows for placement anywhere, including inside battery packs
* The circuit protector is a thermal device - higher current increases internal temperature of the circuit protector
* Once the temperature of the circuit breaker reaches its preset level, the circuit protector limits the current to approximately 500mA
* When the temperature of the circuit protector drops, the circuit protector resets itself
* The thermal feature makes this circuit protector excellent for withstanding high transitory currents often produced by devices such as capacitors and motors
* Response time of the circuit protector depends on the level of overload - 5 Amps will cause the circuit breaker to trip quicker than 2 Amps

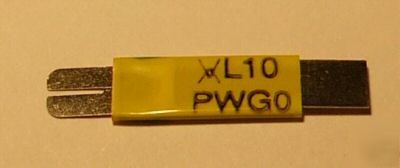

For closer detail of the circuit protector, please click on the pictures below.
