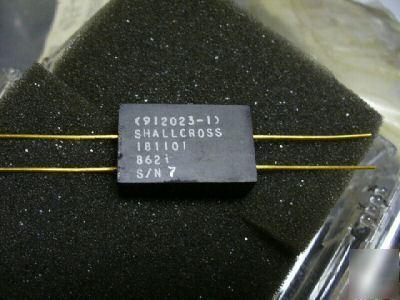

Resistor network,fixed,wirewound
ELECTRICAL RESISTANCE - 8.482 KILOHMS LOWEST RESISTANCE VALUE, 10.000 KILOHMS HIGHEST RESISTANCE VALUE
IDENTICAL VALUE RESISTOR QUANTITY - 1 LOWEST RESISTANCE VALUE, 1 HIGHEST RESISTANCE VALUE
RESISTANCE TOLERANCE IN PERCENT - -0.020 TO 0.020
POWER DISSIPATION RATING IN WATTS - 0.500 TOTAL NETWORK
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 40.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 125.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -500.0 TO 200.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0
SCHEMATIC DIAGRAM DESIGNATOR - 1 ISOLATED ARRAY
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 107 TERMINALS ONE END
BODY LENGTH - 1.000 INCHES NOMINAL
BODY WIDTH - 0.380 INCHES NOMINAL
BODY HEIGHT - 0.620 INCHES NOMINAL
RELIABILITY INDICATOR - NOT ESTABLISHED
TERMINAL LENGTH - 1.000 INCHES MINIMUM
