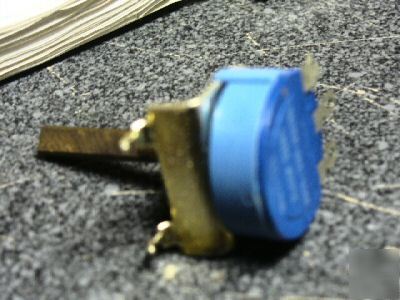

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 5.0 MEGOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -20.0 TO 20.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -150.0 TO 150.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 2.0 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 70.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 125.0 SINGLE SECTION
BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED
BODY DIAMETER - 0.750 INCHES NOMINAL
BODY LENGTH - 0.250 INCHES NOMINAL
MOUNTING BUSHING LENGTH - 0.250 INCHES NOMINAL
SHAFT STYLE - 2C ROUND, FLATTED
FIRST FLAT LENGTH - 0.620 INCHES NOMINAL
FLAT HEIGHT - 0.125 INCHES NOMINAL
SHAFT DIAMETER - 0.157 INCHES MAXIMUM
SHAFT LENGTH - 1.125 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 280.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - STOPS
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 280.0 NOMINAL
NONTURN DEVICE LOCATION - AT 9 OCLOCK
NONTURN DEVICE RADIUS - 0.375 INCHES NOMINAL
FEATURES PROVIDED - HUMIDITY PROOF AND SHAFT SEAL
TERMINAL TYPE AND QUANTITY - 3 TAB, SOLDER LUG
TERMINAL LOCATION - RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE
RELIABILITY INDICATOR - NOT ESTABLISHED
