> New balluff optic sensor - M12 connector - pnp output -
New balluff optic sensor - M12 connector - pnp output -
Photo Sharing and Video Hosting at Photobucket

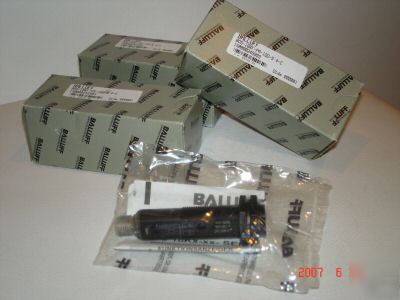

The item is new, never user, in mint conditions, factory sealed;
Retail price is approx. US$ 107,00;
There are four (04) pieces available (!).

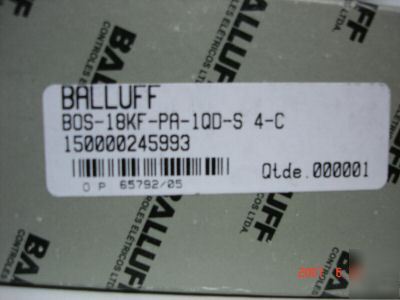

Balluff Optic Sensor – BOS-18KF-PA-1QD-S 4-C
Retroreflective Optical - 4000 mm
· 10 – 30 V DC operational voltage;
· Red LED emitter light source
Photo Sharing and Video Hosting at Photobucket
The sensor can be fixed by means of the M18x1 threaded body through a 18mm diameter hole, using the specific washer and the two CH.24 nuts enclosed (1.5Nm maximum tightening torque).
Alternatively, the sensor can be mounted through the two housing’s holes using two screws (M3x22 or longer) and washer.
Amongst the various possible solutions, we suggest to choose the combination that offers the best visibility of the signalling LEDs and the easiest access to the potentiometer.
Wide range of accessories available: 22mm nuts, h=8mm, (2Nm maximum tightening torque) guarantee an improved torque and various orientable fixing brackets ease the sensor positioning (please refer to the accessories listed in the general catalogue).
The operating distance is measured from the front surface of the sensor lens.
Only diffuse type: To improve the detection, the object has to be moved closer or further away from the front surface of the sensor lens.
Position the sensor and reflector on opposite sides. Turn the sensitivity potentiometer to the maximum position. Moving the sensor both vertically and horizontally, determine the power
on and off points of the yellow LED (OUT) and then mount the sensor in the middle of the points defined. Optimum operation is obtained when the green LED (mod.B01) is ON and the yellow LED is OFF. If necessary reduce sensitivity in order to detect very small targets. In order to improve alignment, repeat the procedure detailed above whilst progressively reducing the sensitivity.
Photo Sharing and Video Hosting at Photobucket
10...55Hz, 1.5mm Amplitude 3x2h
Photo Sharing and Video Hosting at Photobucket
Photo Sharing and Video Hosting at Photobucket
United States: US$ 16.00 Priority Mail / US$ 35.00 EMS
Europe: US$ 17.00 Priority Mail / US$ 38.00 EMS
Australia: US$ 22.00 Priority Mail / US$ 40.00 EMS
Canada: US$ 16.00 Priority Mail / US4 35.00 EMS
Japan: US$ 22.00 Priority Mail / US$ 40.00 EMS
Others: please e-mail us at bra-****@hotmail.com for S&H quotation.
We encourage you to ask any further questions not covered by this add.
Please e-mail us at bra-****@hotmal.com
