Mastech power meter

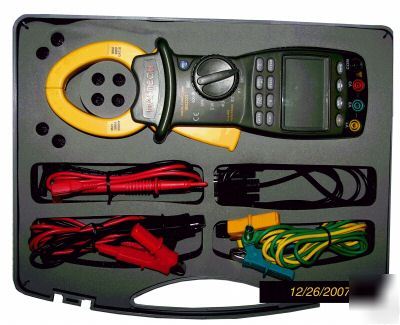

This three-phase digital power clamp meter is a handheld aptitude meter with incorporated current meter and a power measurement instrument. It is composed of three channels; voltage, current power and single chip Microcontroller. It has powerful measuring and data processing software and can completely measure, calculate and display the 8 parameters: Voltage, Current, Active Power, Power Factor, Apparent Power, Reactive Power, Active Energy, and Frequency. It has stable capability and easy operation. it is especially suited for measurement and overhaul of electric power equipment and power supply circuitry on the spot. The structure of the unit, as a portable clamp meter, is very light weight and easy to use. To the power measurement user, the digital power clamp meter, which is used completely in three-phase systems, is one of the best instruments available.
1) Power measurement of 3-phase 3-wire circuits, 3-phase 4 wire circuits, single-phase circuits.
2) It can complete the true RMS value measurement. If there is a nonsinusoidal AC current input sgnal, it can accurately measure the active current.
3) Using autorange switch circuitry and modulus transducers, which have 8000 count and high resolution, the instrument has high accuracy and easy operation.
4) Minimum current of Active Energy measurement is 0.5A, it can measure expending energy per hour of general electrical equipment.
6) Measure five power parameters of each phase and total power value in three-phase measurement mode respectively.
7) With multifunctional button control, there are double scales analogue bar graphs to display fluctuations of voltage and current.
8) With a PC RS232C interface, (COM Port), and special Windows data graphics software.
9) Complete set of cables for direct hook-up of three-phase, single-phase and personal computer interface.
