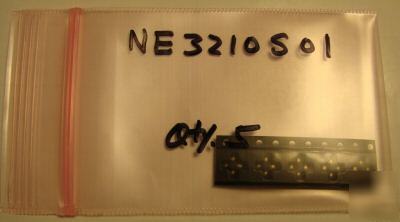

New nec super low noise nf=0.35@12GHZ, NE3210S01, , 5PCS
* Frequency Range: 2GHz - 18GHz;
* Gain (typ): 21.2dB at 2GHz; 16.2dB at 8GHz; 14.7dB at 12GHz; 11.9dB at 18GHz
* Super Low NF: 0.25dB at 2GHz; 0.3dB at 8GHz; 0.34dB at 12GHz; 0.72dB at 18GHz
Frequency vs Gain and Noise Figure as follows:
* 2GHz: NF=0.25dB Gain=21.2dB
* 4GHz: NF=0.26dB Gain=19.5dB
* 6GHz: NF=0.28dB Gain=18.2dB
* 8GHz: NF=0.30dB Gain=16.2dB
* 10GHz: NF=0.32dB Gain=14.7dB
* 12GHz: NF=0.34dB Gain=13.5dB
* 14GHz: NF=0.42dB Gain=12.9dB
* 16GHz: NF=0.56dB Gain=12.3dB
* 18GHz: NF=0.72dB Gain=11.9dB
http:// /pdf/datasheets/NE3210S01.pdf
Non Linear model from 0.1GHz to 22.5GHz on NEC Website at:
http:// /pdf/models/3210s01.pdf
