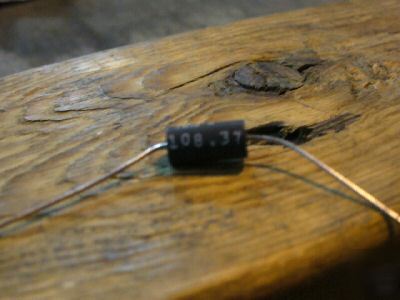

Resistor,fixed,wire wound,noninductive
ELECTRICAL RESISTANCE - 109.000 OHMS
RESISTANCE TOLERANCE IN PERCENT - -1.000 TO 1.000
POWER DISSIPATION RATING IN WATTS - 1.000 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 125.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 145.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -20.0 TO 20.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 14 AXIAL TERMINAL EACH END
BODY DIAMETER - 0.187 INCHES NOMINAL
BODY LENGTH - 0.375 INCHES NOMINAL
RELIABILITY INDICATOR - NOT ESTABLISHED
TEST DATA DOCUMENT - 06481-900526 DRAWING
