12V gear motor pwm variable speed 12VDC gearmotor cw

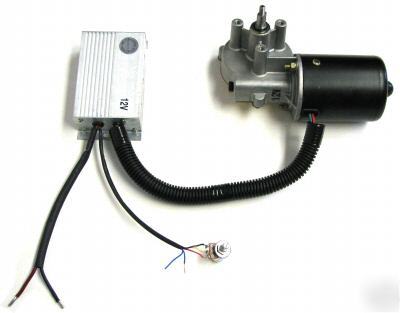

This is a brand new electric gear motor that has an extremely high torque and is speed adjustable with a PWM (Pulse Width Modulating) controller. The gear motor is measured to be 7 inch long and the motor itself has a diameter of 2.5 inches. Drive shaft is 10mm in diameter with 2 flats where flat to flat is 6mm. The shaft has a threaded end that is to fit a M6 tightening nut. Rated voltage of this gear motor is 13.5 VDC and maximum speed is 50 RPM. Rated output load is 60 watts and output torque at 50 RPM is 11.5 N-m (8.5 ft-lb). Mounting is based on M6 screw mounting. The PWM controller features controller-off wires so when the two (blue) wires are in contact, the controller is instantly disabled. This feature is offered as an option and the user may decide not to use it. A 10k ohm potentiometer is provided and is wired to the controller. Red wire is to positive and black wire is to negative. The controller does not accept reverse polarity and doing so will permanently damage the controller. Shaft rotation is CW. Manufacturer: Wondermotor (wondermotor.com)
