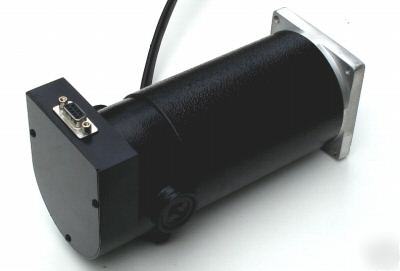

850 oz/in peak servo motor w/ housed encoder cnc router
Brush type 90VDC servo with skewed rotor design and low cogging makes it suitable for high resolution applications such as tight tolerance CNC machining. Like all of our motors, these are very well made.
The high quality HEDS-9100 optical encoder comes completely installed and housed by a machined, black anodized aluminum structure complete with DB-9 Female connector.
Shaft Dimensions: 1/2" Diameter ; 31.5mm Length w/4mm keyway
Encoder Options: Your choice of 250 CPR (1000 PPR) or 500 CPR (2000 PPR)
-Max. Operating Voltage: 90VDC
-Max. Operating Speed: 4800 RPM
-Torque Sensitivity (Kt): 24.88 oz-in/Amp
-Back EMF Constant (Ke): 18.4 V/K RPM
-Terminal Resistance: 1.2 ohms
