05-00889 56" sma low-loss rf microwave coax cable 18GHZ

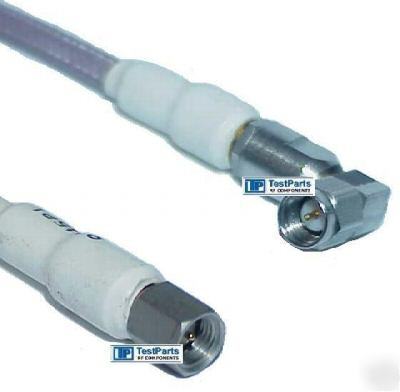

56" W.L. Gore SMA "Low-Loss" Coaxial Cable (G2S01V71056.0)
GOREâ„¢ Microwave Assemblies provide superior insertion loss, phase stability, and shielding effectiveness. These assemblies offer proven solutions for your low loss, high density, wide bandwidth or high power applications. Gore offers a variety of standard cable and connector options to satisfy the needs of most RF applications from DC to 67 GHz. Applications using these high performance interconnects vary from general purpose lab to military installations on airborne, naval, and land platforms.
Max Frequency: 18 GHz, Impedance: 50 Ohms, Center Conductor: Stranded, Dielectric Constant (nominal): 1.4, Velocity of Propagation: 0.85, Temperature °C: -55 to 125, Nominal Outer Diameter in.: 0.190", Minimum Bend Radius (multiple bends) in. 1.0", Nominal Weight: g/ft 16, Crush Resistance lb/linear in. 50, Attenuation at 18 GHz: dB/ft 0.40. Other coaxial cables available.
* W.L. Gore Part No. G2S01V71056.0
* Condition: Used / Working (not tested to original specifications. Removed from surplus military and aerospace equipment)
* RoHS compliance not verified.
* Listing is for one piece. More than one may be shown to better illustrate product.
