1000 ft communication cable commscope 18 awg

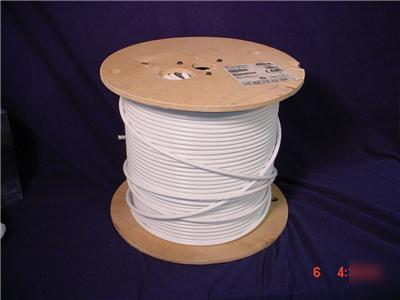

1000 ft Communication Cable CommScope 18 AWG
CATV (ETL) Center Conductor DielectricAluminum Braided Shield Aluminum Foil Shield (Bonded) Aluminum Foil Shield (Non-bonded) Aluminum Braided ShieldJacket
RODUCT DESCRIPTION: P BONDED FOIL, 60% BRAID, NON-BONDED TAPE,
40% BRAID, FLAME RETARDANT PVC JACKET
MEETS NEC ARTICLE 820 V RATING (ETL LISTED)
NOMINAL DIAMETER: 0.040†(1.02 mm)
NOMINAL DIAMETER OVER DIELECTRIC: 0.180†(4.57 mm)
1ST SHIELD: ALUMINUM-POLYPROPYLENE-ALUMINUM
LAMINATED TAPE WITH OVERLAP BONDED TO THE DIELECTRIC
NOMINAL DIAMETER OVER TAPE: 0.187†(4.75 mm)
2nd SHIELD: 34 AWG ALUMINUM BRAID WIRE, 60% COVERAGE
3RD SHIELD: NON-BONDED FOIL SHIELD
4TH SHIELD: 34 AWG ALUMINUM BRAID WIRE, 40% COVERAGE
NOMINAL DIAMETER OVER JACKET: 0.297†(7.54 mm)
NOMINAL JACKET THICKNESS: 0.033†(0.84 mm)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
