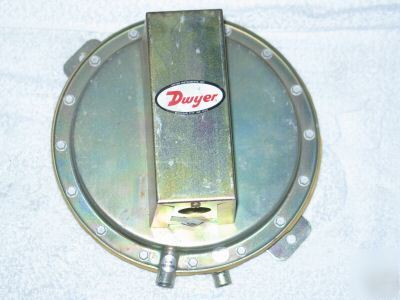

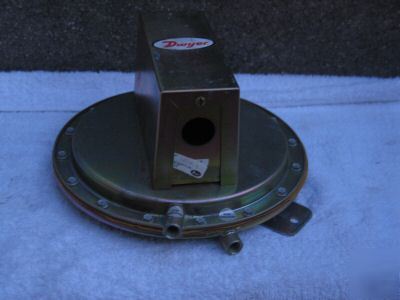

New dwyer model 1626-5 pressure switch
This old faithful switch design is still best where highest precision combined with diaphragm sealed leak proof construction and mounting simplicity are required. Model 1626-5 has a single electric switch. This unit has a diaphragm sealed motion that providing maximum protection against leakage.
Operating Range - Inches w.c.: .5 – 6.0
Approximate Dead Band Minimum (Maximum): .25 (.65)
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Temperature Limits: -30 to 130°F (-34.4 to 54.4°C).
Pressure Limits: Max. 50 in. w.c. (12.44 kPa) continuous, 2 psig (13.79 kPa) surge.
Switch Type: 1626, single-pole double throw (SPDT); 1627, two single-pole double throw (SPDT).
Electrical Rating: 15A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz.
Electrical Connections: 3 screw type, common, normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw adjustment.
Weight: Model 1626, 3 lb 9.8 oz (1.64 kg)
CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES
This unit has the original box but it is dirty from storage
