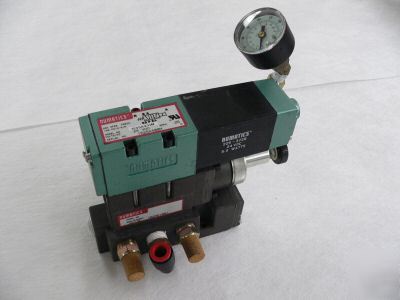

Numatics mk/pa 153SA431M 24VDC 3/8" solenoid valve
Numatics - MK/PA 15 Solenoid Valve
24VDC 0.25 Amp Solenoids, model 225-372B 24VDC 6.3 Watts
Valve model number 153SA431M - Mark 15, single direct solenoid spring return with flush non-locking override, 2 position 4-way porting, plug in base, common exhaust, side cylinder ports, manifold block mounted, plug in wiring with light.
Integral pressure regulator under valve, model, OEM Numatics pressure gauges installed on each regulator
http:// /deliverables/catalogs/valves/mk15.pdf
Mark 15 valves have a plug-in base or manifold, a plug-in solenoid and an optional speed control sandwich. The unit to base electrical plug permits instant valve unit replacement without disconnecting piping or wiring.
Numatics PA 15 Series are high quality air valves with high flow capacity in a compact design. The PA 15 may be mounted on a base or manifold. Sandwich speed controls and sandwich pressure regulators are available.
* Port Sizes: 1/4, 3/8 NPTF & G
* 5 ported, 2 and 3 position, 4-way, spool & sleeve
* Flow Capacity: 65 to 69 SCFM @ 80 PSIG / 1379 to 1477 NI/m @ 6 bar
* Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
* Pilot Pressure Range: 20 to 125 PSIG / 2 Position Detented 15 to 125 PSIG
* Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
* Fieldbus Electronics and I/O Capable
* Direct solenoid or air pilot actuated
* Plug-in solenoid with indicator light
* Unlubricated or lubricated service
* Integral speed control available
* Integral regulators available
