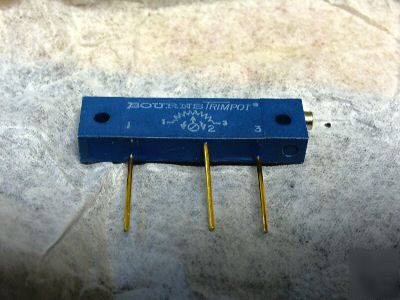

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 50.0 OHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -5.0 TO 5.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -50.0 TO 50.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.75 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 150.0 SINGLE SECTION
BODY STYLE - 26B RECTANGULAR W/MOUNTING HOLES/SLOTS
BODY LENGTH - 1.250 INCHES NOMINAL
BODY WIDTH - 0.190 INCHES NOMINAL
BODY HEIGHT - 0.315 INCHES NOMINAL
LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS - 1.000 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.115 INCHES NOMINAL
SHAFT LENGTH - 0.058 INCHES NOMINAL
MOUNTING METHOD - UNTHREADED HOLE AND TERMINAL
MOUNTING FACILITY QUANTITY - 2
MOUNTING HOLE DIAMETER - 0.093 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.700 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.300 INCHES NOMINAL
TERMINAL LENGTH - 0.500 INCHES NOMINAL
TERMINAL LOCATION - LOWER ADJACENT SIDE SINGLE ROW
RELIABILITY INDICATOR - NOT ESTABLISHED
TEST DATA DOCUMENT - 81349-MIL-R-27208 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-27208/8 GOVERNMENT SPECIFICATION
III OVERALL LENGTH - 1.308 INCHES NOMINAL
III OVERALL HEIGHT - 0.815 INCHES NOMINAL
III OVERALL WIDTH - 0.190 INCHES NOMINAL
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR27208-8
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RT12C2Y500
