Mini usb & bluetooth interface gps module demo board

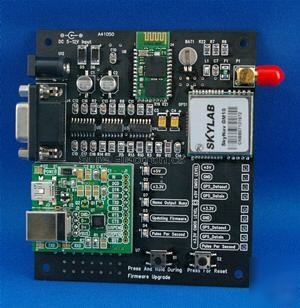

Mini USB & Bluetooth Interface GPS Module Demo Board
1. Great for GPS based tools or appliance development.
2. Three useable ports, USB->UART bridge based on CP2102, legacy RS232 port, and an optional Bluetooth simulated RS232 port.
3. Module compatible with Ublx TIM-LC module in pin out.
4. Module use uNav 8130 baseband processor, 1008 RF frontend, 4th generation, -152dbm sensitivity.
6. Could locate with the antenna inside the room and 1 meter away from the window (normally when over 6 satelities in view site).
7. Orion analyser software provided, baudrate, NMEA output package selectable. (GPS module baud rate is constant 9600bps.)
8. Pulse per second signal selectable. (Not in the standard rom, could be flashed into the module, we would not provide any warranty if the module failed in update.)
9. All 3 communication method could work together. All 3 ports could control the module and accept NMEA data.
10. USB port and Bluetooth port can not modify the baud rate, user can only modify NMEA output package through those 2 ports.
11. Through RS232 port, all parameters could be modified.
12. Update may cause module fail permanetely, and will cause warranty void. If user want to do update, user must use a RS232 port (not USB bridged type) to update firmware.
Mini USB & Bluetooth Interface GPS Module Demo Board
