New port 1935-c power meter
Technology Equipment Corp is a global dealer of new and used high-tech equipment, parts & materials, including fiber optics, test equipment, semiconductor manufacturing instrumentation, laboratory, microscopes, metrology, and more.

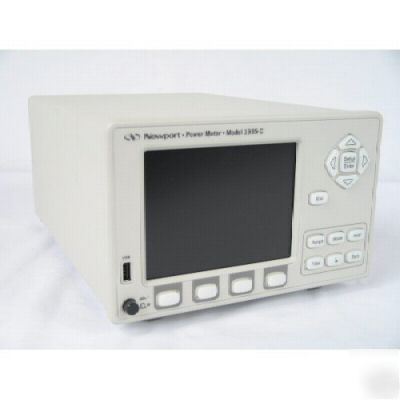

Newport 1935-C Power Meter Used
Model/Part No:1935-C Our Item ID: 5000
Compatible, Hot-swappable Newport Detectors 918D, 818P, 818E, and 818 (w/adapter) Sampling Rate (kHz) 250 Measurement Rate (kHz) 10 Display Refresh Rate (Hz) 20 Maximum Rep Rate (kHz) 10 (Pyroelectric Detectors) Maximum Rep Rate (kHz) 20 (Photodiode Detectors, Peak to Peak Power) Resolution (% of Full Scale) 0.0004 CW Accuracy (%) ±0.1 Accuracy (%) ±1 (Peak to Peak, Pulse to Pulse, Integration) Frequency Measurement Range (4) 1Hz-250kHz Maximum Detector Input Current (mA) 25 Maximum Detector Input Voltage (V) 130 Analog Output (User Selectable) 0–0.5 V into 50W, 0–1 V into 1MW 0–1 V into 50W, 0–2 V into 1MW 0–2.5 V into 50W, 0–5 V into 1MW 0–10 V into 1MW Analog Output Bandwidth DC-500 kHz (Photodiode), DC-1.9 MHz (Thermo or Pyro) Display Type 5.7” Graphical TFT LCD, ¼ VGA Display Formats 20 mm Numeric, Bar Chart, Min/Max Bar, Statistics Communication Interfaces USB and RS-232 Internal Sample Storage (data points) 250,000 External Sample Storage (data points) Defined by external USB Flash drive (user supplied) Power Requirements 90-240 VAC
Item Tested?: TestedPhysical Condition: Very Good; Working Condition: Power-On Test Only Performed10 | 16x 16x10 | 1
