New tv one cs-400 corioscan select cs-400 vga to tv
NEW TV One CS-400 CORIOscan Select CS-400 VGA to TV
NEW TV One CS-400 CORIOscan Select CS-400 VGA to TV
This item is brand new, open box and has never been used.

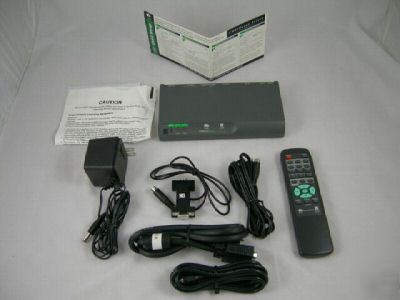

It is priced and packaged with the accessories and software pictured in the listing.
We highly recommend that you purchase a service plan coverage along with this equipment in order to protect your valuable investment. You can purchase a service plan coverage by following the link below:
* Professional image quality - crisp and clear
* Absolute maximum of 1600x1200 resolution (1024x768 recommended)
* 4-line flicker reduction for super-stable image on TV (equivalent to 8 'line buffers' on some competitor's units)
* Automatic screen adjustment
* Full-feature infra-red remote control
* Quick adjust panel buttons for Overscan and Freeze
* No driver software required Composite Video, S-Video, RGB outputs.
* Non-volatile memory saves all settings
* Button Lock feature prevents settings being altered by accident
* Remote control Lock-out perfect for education and exhibitions
* Works with very high refresh rates
* Brightness Control - allows video output from the unit to be adjusted to match other video hardware, such as playback of a video tape.
* On-screen display for ease of use
* Microsoft® Serial Mouse emulation on infra-red Remote Control Port sharer supplied allows Microsoft® Serial Mouse and infra-red mouse to be connected at the same time
* RS232 interface for control of unit from your software
The On-Screen Display (OSD) provides ease of setup and status monitoring and the RS232 Interface enables the Infrared Remote Control Unit to function as a Remote Mouse to control your computer from a distance - the perfect feature for that important presentation! The CORIOscan Select has double the video memory of the Connect to provide an optimized video output for even higher quality computer-to-video conversion. Another added value is its protective, stylish carrying case to house the unit and its accessories. This light and highly versatile product makes an easily transportable traveling companion for any presentation. The CORIOscan Select also has a Brightness Control and Dual Composite and S-Video Outputs.
* Approx. 24kHz to 100kHz horizontal scan rate
* Virtually any vertical scan rate accepted - horizontal scan rate is more important
* Separate TTL-level HSync & VSync positive or negative going
* 24 bit compatible (23 bits stored in memory)
* Standard VGA output to go back to monitor
* Composite Video: 1 volt peak-peak on phono socket(s)
* S-Video: 1 volt peak-peak on 4-pin mini-DIN
* RGB 0.7v p-p on 15 pin D-type
* Proprietary scaling method - no line dropping up to 1024 x 768
* AutoSet feature automatically scales computer image to fit TV
* Underscan & Overscan settings user-adjustable
Image Enhancement and Filtering
* Proprietary 2 or 4 line flicker reduction
* Infra-red remote control supplied
* Control via front-panel push buttons (Overscan/Underscan/Freeze)
* Intelligent micro-controller eases use.
* Control via RS232 Port (CORIOscan Select only)
* OSD (On-Screen Display)-(CORIOscan Select only)
* Microsoft® Serial Mouse emulation on infra-red remote control (CORIOscan Select only)
* Consumes approx. 300mA @ 12v.
* Voltage requirements: minimum 12 volts DC, absolute maximum 16v DC.
* Requires 'centre-pin positive' 2.1mm DC power plug input.
* Reverse polarity protected.
Sub-carrier lock & sync pulses
* Sub carrier locked to line frequency
* Sync pulse widths conform to TV standards
* Requires 'centre-pin positive' 2.1mm DC power plug input.
* Reverse polarity protected.
* Size: 200mm x 35mm x 100mm
*Requires extra lead pack for computers without 15-pin VGA connectors.
