> Belden 87777 002 1000 teflon 3 pair 22AWG shielded wire

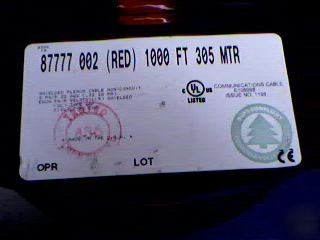

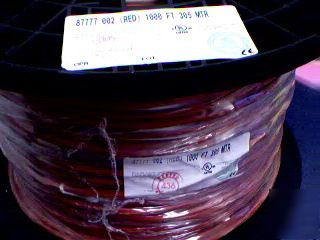

Belden 87777 002 1000 teflon 3 pair 22AWG shielded wire
TEFLON INSULATE, 22AWG STRAND (7X30), 3 PAIRS RED
ONLINE CURRENT RETAIL PRICE IS $1,661.82 (Per 1000 ft. Coil)
I WILL NOT TAG A REEL & SEND IT THAT WAY AS OTHER SELLERS DO
COMPUTER/INSTRUMENT CABLE, TEFLON INSULATE, 22AWG STRAND (7X30), 3 PAIRS RED
Stranded tinned copper conductors. Each twisted pair is 100% Beldfoil® shielded. Ratings: 300 VRMS. Non-conduit. 24 AWG stranded TC drain wire.
FEP Insulation. Pairs cabled on common axis to reduce diameter.
100% Beldfoil® shielded plus a 22 AWG stranded tinned copper drain wire.
Diameter, Outer, Nominal : 0.234 in.
Insulation Material : Fluorinated Ethylene Propylene
Material, Conductor : Tinned Copper
Material, Jacket : Fluorocopolymer
Shield : Aluminum Foil-Polyester Tape Inner Shield
Standards : NECâ„(UL) Specification CMP, CECâ„C(UL) Specification CMP and Passes UL NFPA 262, C(UL) FT6 Flame Tests
Temperature, Operating : -20 to +150 °C
Thickness, Insulation : 0.050 in.
***ALL NEW!!! FIRST LINE!!! ***
