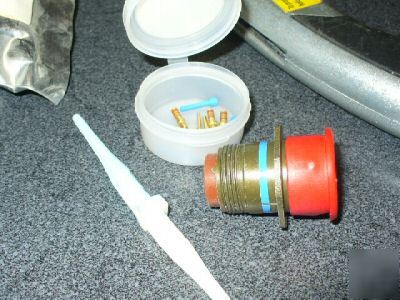

Connector,plug,electrical
BODY STYLE - 2A STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH - 1.465 INCHES MAXIMUM
OVERALL DIAMETER - 1.542 INCHES MINIMUM AND 1.582 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET PIN
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.188 INCHES
NOMINAL THREAD LENGTH - 0.290 INCHES
SHELL MATERIAL - ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 380.0 OR ALUMINUM ALLOY A380.0
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-367,TY 6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-591 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-591 FED SPEC 3RD MATERIAL RESPONSE
SHELL SURFACE TREATMENT - NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-C-26074,CL 3 OR 4,GRADE B MIL SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - AFAK 14-5 SINGLE MATING END
INSERT MATERIAL - PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY - 5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 1000.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CL 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND THERMAL SHOCK RESISTANT AND CORROSION RESISTANT
SPECIAL FEATURES - IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL. STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-183-6491,P/N M85049/52-1-20W FOR THE STRAIGHT STYLE,OR NSN 5935-01-186-5610,P/N M85049/51-1-20W FOR THE RIGHT ANGLE STYLE
TEST DATA DOCUMENT - 81349-MIL-C-26482 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS3471 GOVERNMENT STANDARD
III PRECIOUS MATERIAL AND WEIGHT - 0.025 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-26482
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3471W14-5P
