New adlink cpcis-6130R/pw w/ cpci-6770 in box
Adlink cPCIS-6130R/PW w/ cPCI-6770 New in Box

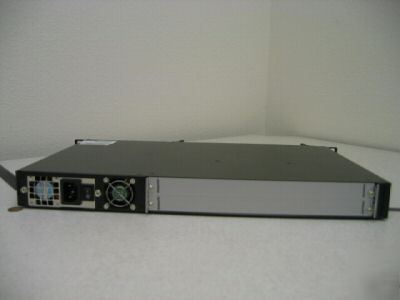

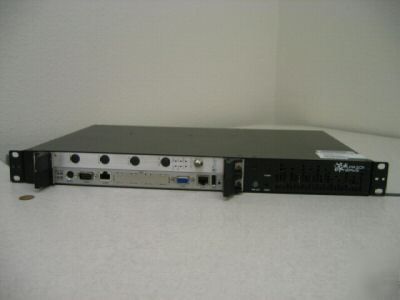

The cPCIS-6130R Series subsystem is designed for Telecom Data Center and Enterprise applications requiring a low profile PICMG 2.0 R3.0 CompactPCI compliant chassis with PICMIG 2.1 R2.0 hot swap support. The chassis is 1U height and standard 19" rack mount width for 6U cPCI cards, has a 2-slot board space, a hot swap backplane, a 64-bit/66MHz cPCI bus, and provides rear I/O for 80mm RTMs.
The cPCIS-6130R is equipped with an ATX 200W AC power supply (cPCIS-6130R/DC4 has a 150W DC PSU) and efficient cooling with 7 fans to meet the needs of a highly integrated single slot system board and matching peripheral. Guarded power and reset switches prevent accidental resets and a removable air filter provides for convenient maintenance.
This unit comes with the cPCI-6770/P7 cPCI Single Slot Low Power P-III-700 System Host CPU Module. Adlink cPCI-6770/P7 cPCI Single Slot Low Power CPU Module features:
• Standard 6U Form Factor, Single-Slot (4TE/HP) Width
• Design for Low Power BGA2 Pentium-III CPU Running at FSB 100 MHz
• Two 144-Pin SODIMM Socket Supports up to 512MB SDRAM
• Build-In Housing for 2.5" Low Profile HDD
• On-Board High Performance AGP VGA Output by ATI Mobility Radeon M6 Controller
• One 10/100 Mbps Ethernet Port by Intel 82559 Controller
• Supports Intel Pre-Boot Execution Environment (PXE) for Remote Boot
• Supports CompactFlash Type-II Socket Via Optional Removable Adaptor
* 14 Day Guarantee Against DOA
