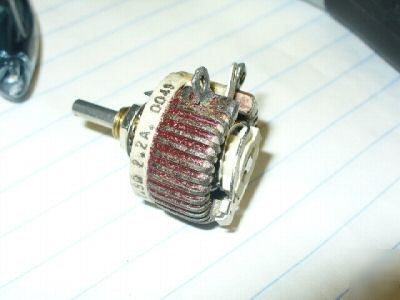

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 2.5 OHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 12.5 HEAT SINK SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 25.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 340.0 SINGLE SECTION
BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED
BODY DIAMETER - 0.875 INCHES NOMINAL
BODY LENGTH - 0.688 INCHES NOMINAL
MOUNTING BUSHING LENGTH - 0.250 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.125 INCHES NOMINAL
SHAFT LENGTH - 0.625 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 300.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - STOPS
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 300.0 NOMINAL
NONTURN DEVICE LOCATION - AT 6 OCLOCK
NONTURN DEVICE RADIUS - 0.250 INCHES NOMINAL
MOUNTING METHOD - STANDARD BUSHING
SCREW THREAD SERIES DESIGNATOR - UNEF
SCREW THREAD DIAMETER - 0.250 INCHES NOMINAL
SCREW THREAD QUANTITY PER INCH - 32.0
TERMINAL TYPE AND QUANTITY - 3 TAB, SOLDER LUG
TERMINAL LOCATION - RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE
RELIABILITY INDICATOR - NOT ESTABLISHED
TEST DATA DOCUMENT - 81349-MIL-R-22 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-22/1 GOVERNMENT SPECIFICATION
III OVERALL LENGTH - 1.313 INCHES NOMINAL
III OVERALL DIAMETER - 1.063 INCHES NOMINAL
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR22-1
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RP061SB2R5KK
