Zapi hp- high frequency mosfet controllers

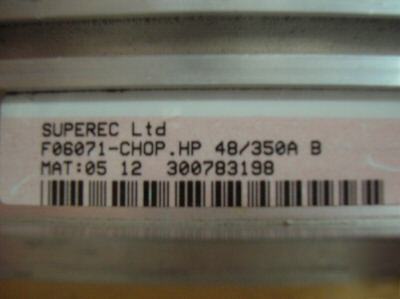

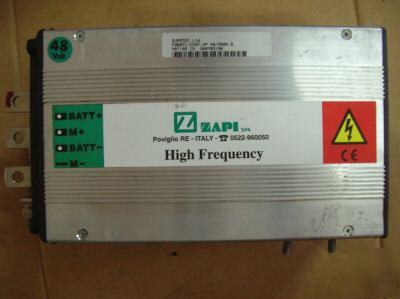

SUPEREC LTDF06071-CHOP. HP 48/350 A B the following informations only for reference;pls check the pictures I listed clearly and make sure it is what you need. ZAPI HP- High Frequency Mosfet Controllers for DC Series Motor
These units can be configured as traction or pump motor controllers and are suitable for operation on medium and large capacity trucks, and tow tractors such as counterbalance, order picker, reach and 3 wheel trucks, fitted with 4 terminal DC Series Wound motors between 2Kw to 20Kw.
* Nominal Battery Voltage: 24, 36, 48, 60, 72, 80, 96V DC
* Maximum Current Ratings:H2400 All Voltages 400A
* Operating Frequency : 18KHz
* Temperature Range: -30° to +40°C
* Enclosure Protection : IP54
* Internal Battery Discharge Indicator
* Overcurrent & Low Voltage Protection
* Arcless Contactor Operation
* Special Safety Circuit for Emergency Reverse Requirements
* 3 Speed Reductions with Compensation
* Flashing LED Display for Diagnostics
* Memory of the last 5 Faults
* Security in Accordance with European CE Standards
* Dimensions: H2400 274 x 150 x 85mm , H2600 & 601 374 x 150 x 85mm
Parameters that may be adjusted using the Digital Console:
* 3 x Electric Braking Levels - Release, Inversion & Pedal
* Potentiometer Minimum & Maximum Values
* Field Weakening or By-pass Drop Out Current Levels
