Ftdi UM245R usb-parallel fifo module - FT245RL avr pic

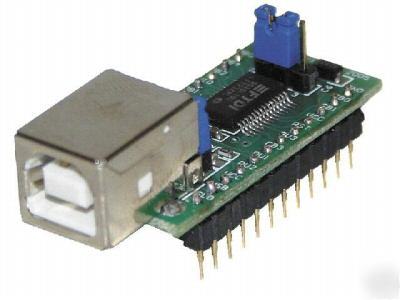

UM245R USB-Parallel FIFO Development Module
The UM245R is a development module which uses FTDI’s FT245RL, the latest device to be added to FTDI’s range of USB UART interface Integrated Circuit Devices.
The FT245R is a USB to parallel FIFO interface, with the new FTDIChip-IDâ„¢ security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to parallel designs using the FT245R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The UM245R module is a USB - Parallel FIFO interface (TTL) development module for the FT245R IC device. The UM245R is supplied on a PCB designed to fit a 24 pin DIP socket, and provides access to all FIFO interface and control pins (TXE#, RXF#, RD#, WR) of the FT245R device.
The UM245R can be configured as either USB bus-powered or self-powered and also supports 5V or 3V level interface IOs via two sets of jumper setting pins. The UM245R can transfer data at up to 1 MegaByte per second.
Ideal for rapid prototyping and development of FT245R designs, an attractive quantity discount structure also makes this module suitable for incorporation into low/medium volume finished product designs.
· Upgrading Legacy Peripherals to USB
· Cellular and Cordless Phone USB data transfer cables and interfaces
· Interfacing MCU / PLD / FPGA based designs to USB
· USB Audio and Low Bandwidth Video data transfer
· USB Software / Hardware Encryption Dongles
· USB FLASH Card Reader / Writers
· Set Top Box PC - USB interface
· USB Digital Camera Interface
· USB Software / Hardware Encryption Dongles
Ideal for use with AVR, PIC and other types of controllers
Additional information (documentations, drivers and other) about UM232R and FT232RL can be downloaded from official FTDI web page FTDI-FT245R
Oficcial price from FTDI for this module is £11.10 (approximately $22.5) - please see FTDI online shop.
