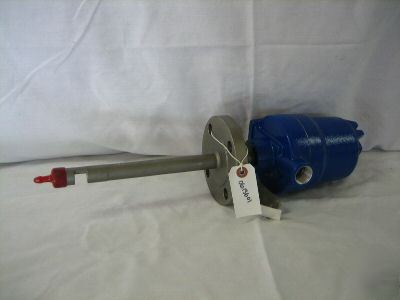

New magnetrol ultrasonic level switch 7" monel 613601
Magnetrol Echotel Model 911 Ultrasonic Level Switch
This model can sense the presence or absence of liquids in a transducer gap by utilizing continuous wave ultrasonic technology. These units are suitable for clean liquid applications having low viscosity, low aeration and a low percent of solids. The measurement is not affected by shifts of specific gravity or conductivity
Electronics Model Number Breakdown:
Setpoints - Single Point Ultrasonic Level Switch
Output Signal - DPDT hermetically sealed relay; 5 amps @ 120/240 VAC or 24 VDC
Housing - Cast Aluminum NEMA 4X/7/9
Transducer Model Number Breakdown:
Setpoints - Single Gap Transducer
Process Connection - 3/4" NPT (See Note Below *)
* This Sensor utilizes the optional 1 1/2 inch, 150 Lb. mounting flange.
website KA Industrial Surplus for other Industrial
While we Strive very hard to Portray each item exactly as we see it, it is your responsibility to ask any questions. Questions???
