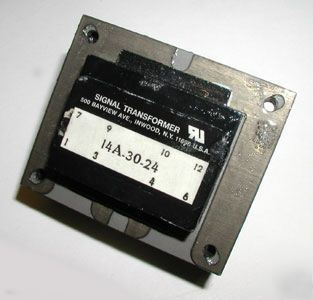

Signal transformer 14A-30-24 24V 1.25A / 12V 2.5A 30VA
Signal Transformer 14A-30-24 24V 1.25A / 12V 2.5A
This is a new Signal Transformer (14A-30-24).
Secondaries (RMS)(Series): 24V C.T. @ 1.25A
Secondaries (RMS)(Parallel): 12V @ 2.5A
Universal operation on 50/60 Hz current, 115 or 230V dual primary
Low profile, split bobbin with top shroud design.
Dual winding secondaries, non-concentrically wound
Low primary to secondary coupling - no electrostatic shield required.
High insulation - Hipot of 4,000V RMS.
Class F insulation - 155 degrees C.
Four hole mounting (mounting screws not provided).
P.C. board mount with industry standard pin spacing.
