Red lion control part#APLR0600 2290 model aplr

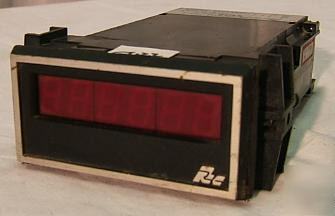

Red Lion Control Part No. APLR0600 2290
This item is used. The information below is from the manufacturors website.
1. DISPLAY: 6-Digit, 0.56" (14.2 mm) high LED display. (APLR)
AC Operation: Available in two voltages.
115 VAC, ±10%, 50/60 Hz, 14 VA or
230 VAC, ±10%, 50/60 Hz, 14 VA
Note: All available units can be powered at Terminal #3 from a 11 to 14
AC Operation: Switch selected via the LDD power supply board,
115/230 (+/-10%), 50/60 Hz, 10 VA for 4-digit, 15 VA for 6 digit
3. SENSOR POWER: +12 VDC, ±25% @ 100 mA max.
4. MAXIMUM OPERATING FREQUENCY: 10 KHz, 50% duty cycle.
10,000 cps with min. pulse width “ON” and “OFF” times of 50 µsec.
5. TIME BASE SELECTION RANGE: 0.004 to 32.764 seconds.
7. MAXIMUM INPUT VOLTAGE AND CURRENT: When the “SIG. IN”
(Terminal 5) is driven from external signal voltages, max. voltage swing is
±50 V peak. Input voltage can be dropped by an external series resistance that
limits input current to ±5 mA. (These ratings are for S3 “OFF”.)
Please contact me with any questions, I have more photos and info if needed.
Contact us by email at ****@yahoo.com with your questions, and please, visit our website at:
