Adtech sx/12 data link simulator sx series v.35

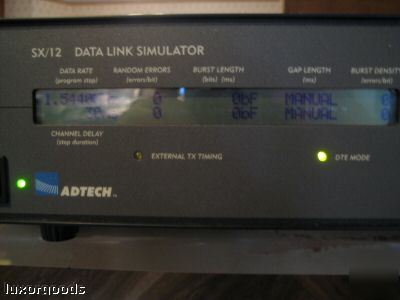

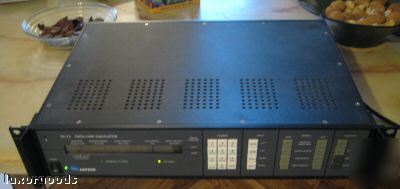

Adtech SX/12 Data Link Simulator
W/ SX SERIES V.35 INTERFACE MODULE
CALL IF YOU HAVE ANY QUESTIONS
Adtech SX Series Data Link Simulators create the same delay and error characteristics caused by long distance terrestrial and satellite data links. By providing realistic simulations of actual network conditions, they allow users to stress test equipment and network applications without the expense and inconsistency inherent with on-line testing.
Utilizing dual-channel, full-duplex interfaces, these devices provide true bi-directional testing using programmable delays, random bit errors, and burst errors. Multiple delay and error events can be programmed into complex sequences to simulate a wide variety of adverse link conditions or even specific events such as targeting line framing bits and testing CPE alarm thresholds.
This unit has the following specifications:
* Type of Channel Full-duplex digital link
* Random (Gaussian) bit error rates from 0, 1 x 10-9, 2 x 10-9, 3 x 10-9, ... 9 x 10-1, 1
* Burst error rates from 9 x 10-1 to 1.0 x 10-9
* Selectable burst length from 1 to 16,777,215 bits or from 1 to 9,999 ms
* Selectable gap between bursts from 1 to 99,999,999 ms
* Fixed gap length, fixed burst length
* Random gap length, fixed burst length
* Fixed gap length, random burst length
* Random gap length, random burst length
* Manual burst trigger, fixed burst length
* Manual burst trigger, random burst length
* Delays up to 10 seconds in 1 ms or 8 bit steps
This unit has the following module installed:

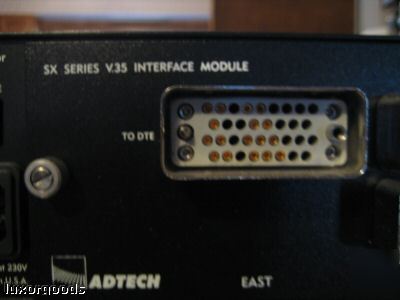

* SX SERIES V.35 INTERFACE MODULE
This unit has the following configuration:
* Version: SX/12-2 Supports link speeds up to 8.448 Mbps
This item is in excellent condition, working perfectly, and comes with a 30 Day Guarantee
