New festo soft start pneumatic valve, mfhe-3-1/2, air

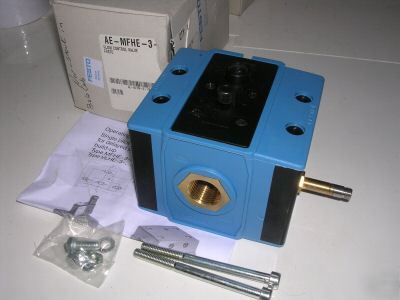

New in the Box Festo Soft Start Pneumatic Valve, MFHE-3-1/2, Air Control, *Soleniod not included
On-off *soleniod valve for delayed pressure build-up, with manual override
Valve for special applications
Soft-start valve MFHE, are used for gradual pressure build-up in pneumatic systems. They assures safe start-up of pneumatic systems.
A minimal amount of air flows into the system via an adjustable flow control valve. Pressure is built up slowly. Downstream cylinders and working devices are slowly advanced to their initial positions. At 50% supply pressure, the valve switches to full flow.
- 3 Connection ports are: G1/2
*MFHE: without solenoid coil and plug socket (F solenoid coil)
- Gradual pressure build-up in pneumatic systems
- Soft-start valve in combination with service units
Manual override can be detented and secured in its initial position. In the depressed position, the manual override is advanced automatically to its initial position by the valve pilot.
Control voltage should not be switched to downstream solenoid valves until after pressure has been built up.
Unused Crib Stock, 3 Ports are G1/2, Max 10 bar or 145 psi
