Stepper motor 282 oz-in & unipolar driver combination

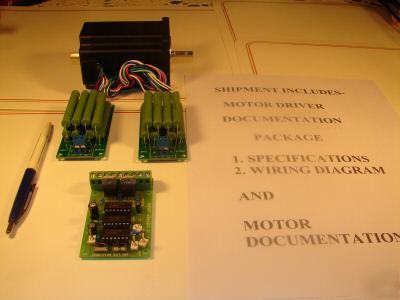

Brand New NEMA 23 282 oz-in stepper motor Includes documentation And a Unipolar Stepper motor driver, and two voltage control regulaters for a 12 volt power supply.
Includes all data sheets and a wiring diagram of how to connect all items.
Dual Shaft Front shaft=1/4" x 7/8" Back shaft= 1/4" x 5/8"
Bipolar series Volts=3.86, Amps=2.1, Ohms=1.84, Holding torque=2.0 Nm. 0r 282 oz-in
Bipolar parallel Volts=1.93, Amps=4.2, Ohms=.0.46 Holding torque= 2.0 Nm. or 282 oz-in
Unipolar Volts=2.76, Amps=3.0, Ohms=.92, Holding torque=1.4 Nm or 197 oz-in
Dual shafts, Main = 1/4" x 20 mm, Back shaft= 1/4" x 15 mm
Body Diameter= 56.2 mm or 2.25"
Specifications on the Unipolar stepper motor driver:
Unipolar operation for 6, or 8 wire motors
Up to 6 amps per phase, 2 phase driver
Logic power needs 5-12 volts dc
Complete 6 oage manual included
