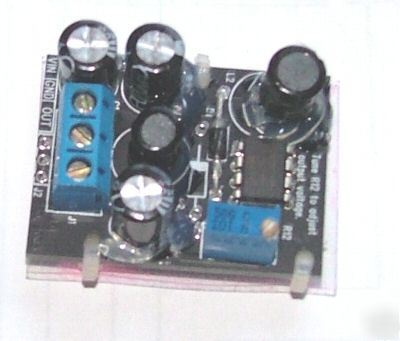

5V dc step up voltage regulator adjustable 5-20V dc
Based on the MC34063 switching regulator IC, data sheet available here; - http:// /pub/Collateral/MC34063A-D.PDF
Connections are via a PCB mount connector block with screw terminals, or can be soldered direct to a 3 hole 0.1" pitch layout on the edge of the PCB (Vin, Gnd, Vout). Output voltage is set using a multi-turn preset mounted on the board.
Thanks to surface mount components (on the underside), the module size is just 40mm x 30mm x 20mm high.
