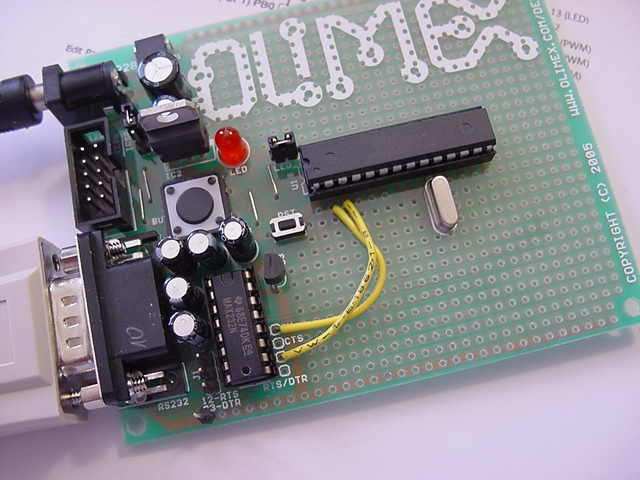

Arduino on a proto board
Debug your Arduino application using a solderless breadboard and then consider this prototyping board for the implementation.
* ICSP 5x2 pin connector for in-circuit programming
* RS232 Tx, Rx interface with MAX232 IC on socket
* 16 MHz crystal on socket (user can replace with any value)
* General purpose push button of PD1 (Digital 0)
* Status LED connected to PC5 (Analog 5 or Digital 19) via removable jumper
* DIL28 microcontroller socket
* Power plug-in jack, 2.1 mm, center positive. Use 9 - 12 VDC.
* Selectable +3.3V / +5V power supply voltage regulator
* Extension solder for each uC pin
* Four mounting holes 3.3 mm (0.13")
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
* Dimensions 100x80 mm (3.9x3.15")
Use with a conventional DB9 type Serial Port or with a USB to Serial Adaptor.
