Infranor smtas brushless pwm servo motor amp drive

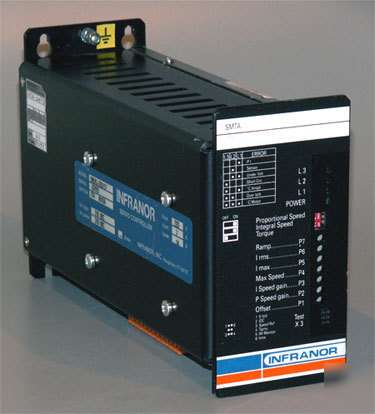

Infranor SMTAS Brushless Servo Motor Amplifier
If you have any questions please call us at: 602.635.4480
Please click here to view picture
PLEASE CLICK HERE TO VIEW PICTURE #3
PLEASE CLICK HERE TO VIEW PICTURE #4
* Operate directly off the line, single phase input voltages of 115 VAC
or 220 VAC. No isolation transformers required.
* Provides standard incremental encoder outputs; 128 to 4000 counts
* Designed for control of sinusoidal type brushless servo motors
* Modular, building block design. One power supply module can
operate up to four amplifier modules. Panel mounted
* EPROM can be matched to any motor manufacturer, allowing operation
of Mavilor motors and those of other makers as well.
* Full diagnostics and visual fault indicators
* All gain adjustments and test points conveniently located on
Electrical Characteristics
* Amplifier Type: 4-quad., PWM
* Rated DC bus voltage: 310 VDC
* Speed/Torque Command: +/- 10V
* Input (command) impedance: 10 kOhms
* Switching Frequency: 9kHz
* Speed loop bandwidth: >100 Hz
* Speed range: Up to 6000 RPM
* Operating Temperature: 0 - 40 deg.C
* Current Monitor : 0 - 10V +/- 5% for Imax
* 3-LED Readout to indicate the following:
* Under Voltage
* Short Circuit
* Sensor Failure
the posting. This does not mean that the unit doesn’t work, only
that we have not tested or checked out the merchandise, or are not
knowledgeable in that specific item. If you have any questions please
feel free to call (***)-421-2389
Any questions call us at : 602.635.4480
