WASP64 avr embedded processor with 3-axis accelerometer

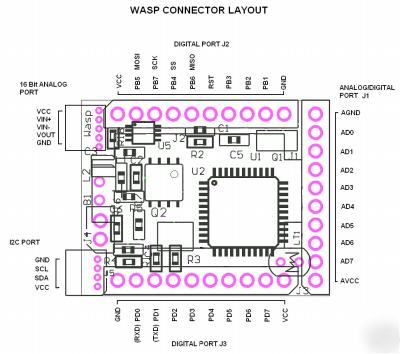

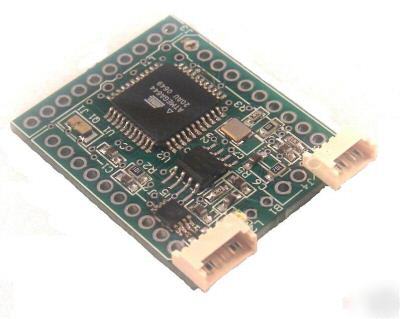

The Wasp64A uses the ATmega644 AVR 8 bit RISC microcontroller from Atmel with a on board 1Mx8 SPI Flash for data storage and 64K of onchip program Flash. The Wasp64A has three expansion ports: 8 10bit A/D, SPI, TWI, digital IO, battery voltage monitor, temperature sensor, optional light sensor and a Serial UART (VDD voltage levels). The board operates from 2.8-5.5VDC. A 32.768KHz clock oscillator provides a real time clock for 24 hour timed wake up of the processor. The optional light sensor is not populated but can be installed by the user.

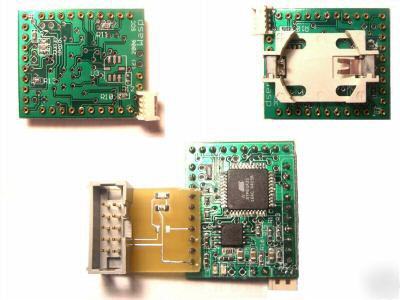

The Wasp64A comes pre-loaded with a sample program burned into the Flash - complete source code to the sample program is on the included CD. All the software tools are open source - included is a C compiler, linker and loader. Other daughter cards are available for prototype development, LCD control, data acquisition and RF applications. New applications can be written in C using Windows IDE tools or GNU C tools and then burned into Flash. The latest AVR Studio from Atmel integrates the C GNU tools into the AVR Studio IDE for seemless Windows development.
Download the Hardware Technical Reference Manual (pdf).
The following options can be ordered with the Wasp:
In place of the default 512Kx8 Serial Flash
SPFM1 - 2Mx8 Serial Flash add $12.00
SPFM1 - 4Mx8 Serial Flash add $16.00
SPFM1 - 8Mx8 Serial Flash add $20.00
LWS1 - Light sensor add $ 7.00
CWS1 - 1/2AA Battery Holder add $ 4.00
ISP10 - Parallel Port Programming Adapter add $14.95
* ATmega64 RISC Microcontroller (8.0MHz)
* Real time clock (32.768KHz)

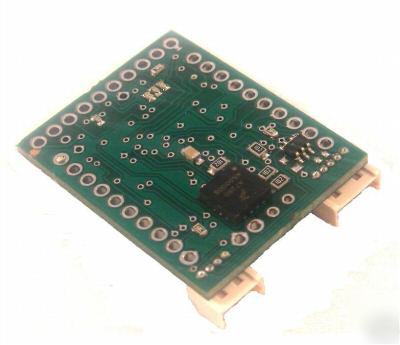

* 3-Axis Accelerometer 1.5,2,4,6G selectable
* 6 Pin ISP Port for programming
* Up 15 general pupose digital I/O signal pins
* 2 LEDs (Green, Red) for status/monitoring
* Optional 16bit D/A 16bit D/A
* 2.8-5.5VDC in (polarity protected)
* Nominal power consumption: 8ma active, 0.8ma standby
* Optional Features (user installed )
This is a new unit direct from the manufacturer and includes warranty and technical support.
