Lot 10 alco TPF11 submn pushbutton black switch spst no


Only ONE lot of TEN each remaining.
We just bought out a long time Phoenix surplus electronics distributor. All of these parts are absolutely "as new", most are aerospace quality, and most are leading traditional American brands. The bulk of the items are unused production overstock. Offered items are not ROHS compatible or compliant.

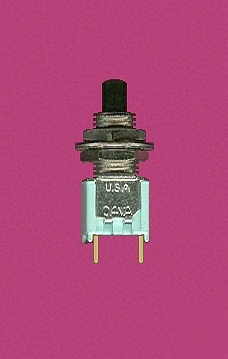

Offered here are lots of ten genuine Alco (now Tyco) ultra tiny subminiature SPST pushbutton switches. These super quality and current production units sell for nearly $10 each at major distributors.
Mounts with 1/4-40 hardware supplied in a quarter inch panel or direct solders to thru hole pc board on 0.2 inch centers. Can also be direct wired. Switch body measures 1/8 x 1/4 x 5/16. Black pushbutton is 1/8 inch diameter.
Normally open contacts. Part number TPF11.
Contacts are specially gold plated for ultra reliable dry switching use. Max recommended contact energy is 0.4 va, making these suitable for logic level input, microprocessor reset, etc. Not recommended for high current or higher voltage switching.
You can click here to reach the Alco Tyco web site.
You can click here to reach an Alco TPF11 summary data page.
You can click here for the Alco TPF11 detailed specifications.
Switch body measures approximately 1/4 x 3/8 x 1/2 inch long. Two gold flashed terminals are intended for printed circuit mounting but may be direct wired.
Guaranteed usable. Switches received in as new and apparently unused in "as new" but loose distributor stock. Switches may include minor storage cosmetics.
