Smt/smd prototype boards OP1560B 3 pack * * sale * *
"Congratulations on your new prototyping board line. I wish these had been available 10 years ago. And you may quote me on that." Forrest M. Mims III

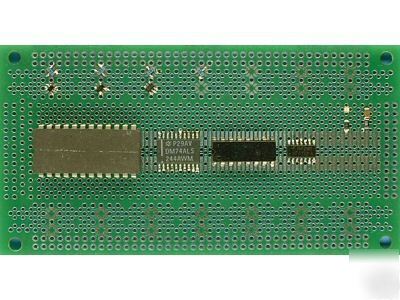

Three OP1560B ONE PASSircuitTM surface mount / through hole prototyping boards from ONE PAS, INC. This board has all of the features of the Patented OP840B ONE PASSircuitTM through hole board plus surface mount locations for SOP, SOIC and our new Patent Pending ONE PASSOT23TM universal SOT23 mounting location that holds 3, 4, 5 and 6 pin devices.
The new ONE PASSOT23TM is a unique eight pad location that is placed inside the four pin sockets with additional traces offset and running between the existing traces. This allows placement of SOT23-3, 4, 5 and 6 pin devices to also be turned 360 degrees giving surface mount the same functionality as through hole.
In the IC area traces are spaced at 0.05" to allow surface mounting of ICs. The elongated surface mount pads will hold SOP (thin frame) or SOIC (wide frame) devices. Every other pad has a through hole pad in it's center allowing 0.3" dip placement with a free trace running between each pin. All of the traces are offset from each other and terminate in a continuous Patented four pin socket array allowing interconnection of signals using short jumpers between the IC pins. 0.6" ICs can be mounted in the through hole area just outside of the surface mount pads.
Imagine, one small board that can hold 0.6" & 0.3" DIPs and SOP & SOIC surface mount and SOT23-3, 4, 5 & 6 pin and TO92 & TO218 & TO220 and all of your passive devices at the same time! But wait, it doesn't end there. There are also areas for single and dual row headers or RJ11 & RJ45 connectors, four corner mounting holes for chassis mount and the board fits in a standard 3" x 6" plastic project case available from Radio Shack.
The OP1560B from ONE PAS, INC. is made of UL approved, fiberglass reinforced, dual sided, 1 oz. copper plated material. It is plated through, solder masked and pre-tinned to aid soldering. These are professional grade prototyping tools at hobby prices.
More information about ONE PAS, INC. may be found by typing our name into any major search engine.
This is a lot of 3 circuit boards that list for $9.95 each.
