> Vfd vacuum fluorescent display 20X2 CU20026SCPB-T20A

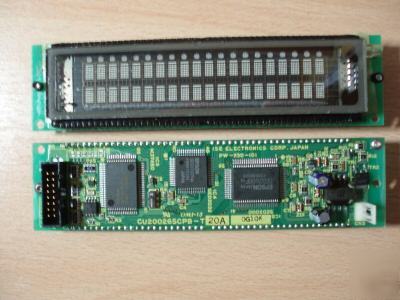

Vfd vacuum fluorescent display 20X2 CU20026SCPB-T20A
USED, IN GOOD WORKING CONDITION
Compatible with Noritake CU20026-TW200A, and software compatible with CU20026SCPB-T30A, see the table below
Replacement for CU209SCPB-T21A
Replacement for CU209SCPB-T20A
Replacement for CU20025SCPB-T20A
Replacement for CU20026SCPB-T20A
Replacement for CU40026SCPB-T20A
P/S*= Parallel and Serial ** DP = Decimal Point, COM = Comma Temperature Range - Normal: -10°C~+65°C, Extended: -40°C~+85°C
􀂉 2 Lines of 20 Characters 5mm High
􀂉 High Speed Parallel/Serial Interface
􀂉 Operating Temp -40°C to +85°C
􀂉 High Brightness Blue Green Display
􀂉 ASCII, Katakana & Extended Character Font
􀂉 8 User Definable Character RAM
The module includes the Vacuum Fluorescent Display glass,
driver and micro-controller ICs with refresh RAM, character
generator and interface logic. The high speed 8 bit parallel
interface is 5V CMOS compatible suitable for connection to a
host CPU bus. The asynchronous serial interface accepts baud
rates up to 19,200 with or without parity. Two character font
tables can be hardware or software selected. User defined
characters and many control commands are available.
Parameter Symbol Value Condition
Power Supply Voltage VCC 5.0VDC +/- 5% GND=0V
Power Supply Current ICC 290mADC typ. Vcc=5V
Logic High Input VIH 2.0VDC min. VCC=5V
Logic Low Input VIL 0.8VDC max. VCC=5V
Logic High Output VOH 4.4VDC min. IOH = -2.0mA
Logic Low Output VOL 0.5VDC max. IOL =2.0mA
The power on rise time should be less than 100ms.The inrush current at power on can be 2 x ICC.
OPTICAL and ENVIRONMENTAL SPECIFICATIONS
Character Size/Pitch (XxY mm) 3.3 x 5.05/5.1 x 9.95
Dot Size/Pitch (XxY mm) 0.5 x 0.55/0.7 x 0.75
Luminance 700 cd/m2 (204 fL) Typ.
Colour of Illumination Blue-Green (Filter for colours)
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Operating Humidity (non condensing) 20 to 80% RH @ 25°C
The module includes the Vacuum Fluorescent Display glass,
driver and micro-controller ICs with refresh RAM, character
generator and interface logic. The high speed 8 bit parallel
interface is 5V CMOS compatible suitable for connection to a
host CPU bus. The asynchronous serial interface accepts baud
rates up to 9,600. Two character font tables can be hardware
selected. A user defined character and many control commands
It has chips on the back that reads:
SED2000F, SED2032F and SCPB-T 20x2
