Wj AH1 mmic high P1DB/OIP3 gaas rf amp 200MW (5PC/lot)
250MHz ~ 4 GHz/+22dBm P1dB/3.2dB NF

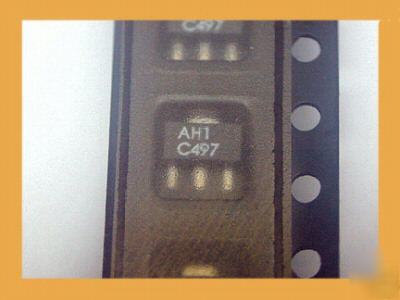

Here is one lot of 5 pieces of WJ AH-1, 250MHz to 4 GHz MMIC housed in a SOT-89 surface mount package.
What is beautiful with this MMIC is that it has high dynamic range at +22dBm P1dB, i.e. 200mW+ output power. +41 dBm OIP3 also means the AH-1 has a very good harmonics performance as well. Thus the AH-1 can be used as a good pre-amplifier and serves as a driver for rf power amplifier.
Sorry that I have been busy for quite a while so I appolize to those who heard from me that I would be listing this nice MMIC . . . really sorry!
[Item would be dispatched as "Gift" to individuals registered as private users for no tax purpose. No invoice, therefore, would be attached.]
Download datasheet here. Please note that these are AH-1 NOT AH-1G, so they are not RoHS compliant!
Euro 7.9 each by Barend Hendriksen HF Electronics
A Wideband Pre-amp by Daniel Uppstrom (SM6VFZ). Thanks to Daniel. He also developed an interesting RF/Microwave S-Parameter manipulation program called Salut..
Thanks for looking and best wishes!
